TUBE OD RANGE: 0.25 – 4.5″ / 5 – 119 mm
CC122 Orbital Cutting Machine
The CC122 is a versatile orbital cutting machine designed for precision and efficiency in tube and pipe preparation. Ideal for industries requiring high-quality results, the CC122 delivers clean, burr-free cuts on any type of steel and exotic alloy. Its lightweight, ergonomic design ensures ease of use and portability, while its robust construction guarantees durability and consistent performance.
Equipped with advanced features like quick tube clamping and a smooth cutting process, the CC122 enhances productivity and ensures perfect preparation for welding or other downstream applications. This cutting-edge tool is a reliable choice for professionals demanding accuracy and efficiency.
Mobile Nav
| Description | Electric standard motor | Electric fast motor |
| Part No. | 122FS15 / 122FS25 | 122FS19 / 122FS29 |
| Diameter range | 0.25 – 4.5″ / 5 – 119 mm | 0.25 – 4.5″ / 5 – 119 mm |
| Cutting capacity* | Up to 0.6″ / 15 mm | Up to 0.6″ / 15 mm |
| Blade rotational speed | 30 – 75 rpm | 95 – 280 rpm |
| Electric motor power | 1200 watt | 1200 watt |
| Voltage | 110 or 220 volt | 110 or 220 volt |
| Frequency | 50 / 60 hz | 50 / 60 hz |
| Air working pressure | n/a | n/a |
| Max acoustic radiation | 90 dB | 90 dB |
| Vibration level | < 2.5 m/s2 | < 2.5 m/s2 |
| Unit weight | 44 kg / 97 lbs | 44 kg / 97 lbs |
| Machine dimensions | 17.44 x 21.29 x 11.96″ / 443 x 541 x 304 mm | 17.44 x 21.29 x 11.96″ / 443 x 541 x 304 mm |
| Packing dimensions | 24.80 x 17.72 x 28.35″ / 630 x 450 x 720 mm | 24.80 x 17.72 x 28.35″ / 630 x 450 x 720 mm |
| Packing weight | 136.7 lbs / 62 kg | 136.7 lbs / 62 kg |
| * Depending on type of saw blade used and tube material | ||
- AXXAIR CC’s range (powered by a standard or fast electrical or pneumatic motor) consists of a stainless-steel concentric clamping system with a large number of contact points, increasing the cutting range and quality and avoiding tube distortion.
- The stainless-steel jaws guarantee protection from contamination of the tube.
- The distinctive rotation wheel offers smooth rotation, increasing the lifetime of the cutting blade and the cutting quality.
- The penetration lever engages the saw blade for effortless and consistent penetration and cutting of the tube, extending the blade life and improving safety and ease of operation.
- The short blade to jaws distance reduces vibration, extends the blade life and improves cutting quality.
CONSUMABLES & ACCESSORIES
- High quality blades performing burr-free square cuts (< 0.25 mm / 0.01″ perpendicularity precision)
- Lubricant oil and paste
- Support benches for longer tubes
- Automatic rotation and clamping system for higher and faster repeatability and productivity
- Conversion kits to allow for three different operations: cutting, bevelling and welding.
The distinctive rotation wheel offers a smooth rotation, increasing the lifetime of the cutting blade and the cutting quality.

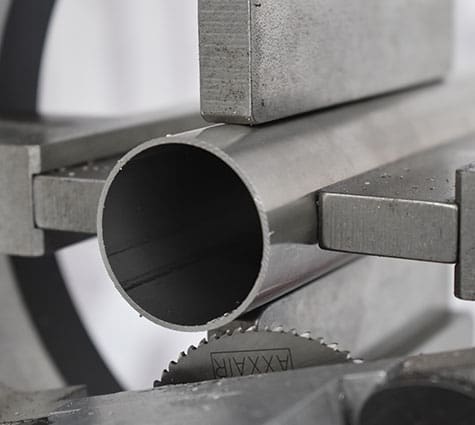

Stainless steel concentric clamping system with a large number of contact points, increasing the cutting range and quality, and avoiding tube distortion
The penetration lever engages the saw blade for effortless and consistent penetration and cutting of the tube, extending the blade life and improving safety and ease of operation.
AXXAIR offers a wide range of high-quality blades performing burr-free square cuts (< 0.25 mm / 0.01″ perpendicularity precision).
BROCHURE
OPERATING MANUAL
Videos
AXXAIR Orbital cutting machines, range x22
