TUBE OD RANGE: 0.5 – 4.5″ / 12 – 115 mm

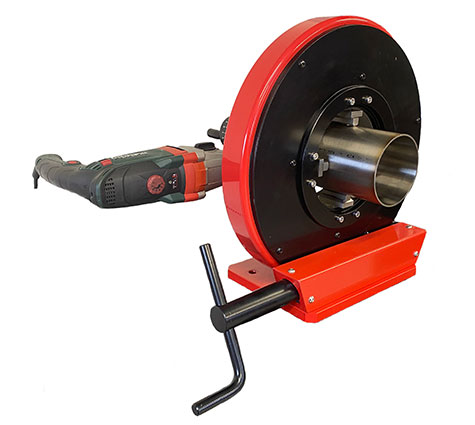

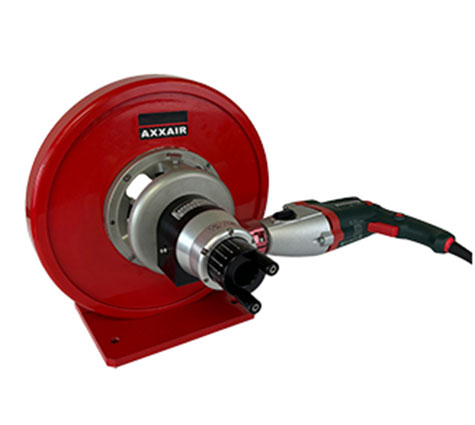

DC115-BM Tube Facing & Squaring Machine (with concentric clamping)
The AXXAIR DC115-BM tube squaring machine with concentric clamping is a cutting-edge tube end preparation tool designed for precision-facing of tubes and pipes, with thin walls and various diameters. Its advanced orbital facing technology ensures tube ends are perfectly perpendicular to the tube axis, burr-free, and have a smooth surface finish — essential for high-quality welding and seamless assembly.
Unlike traditional cutting methods that leave irregularities and burrs, the DC115-BM delivers a clean, accurate finish through its superior orbital facing and concentric clamping system. Thanks to its concentric clamping capability, the DC115-BM can easily adapt to different tube diameters, offering maximum versatility for various applications.
The DC115-BM is ideal for applications in aerospace, automotive, pharmaceutical, and semiconductor industries where flawless tube preparation is critical to maintaining operational excellence and product integrity.
Mobile Nav
| DESCRIPTION | Electric |
| Part No. | DC115-BM1 / DC115-BM2 |
| Diameter range | 0.5 – 4.5″ / 12 – 115 mm |
| Beveling wall thickness capacity | Up to 0.118″ / 3.0 mm |
| Minimal straight length of tube | 2.283″ / 58 mm |
| Idle speed | Speed 1: 12 – 72 rpm; Speed 2: 34 – 207 rpm |
| Electric motor power | 1300 watt |
| Voltage | 110 or 220 volt |
| Frequency | 50 / 60 hz |
| Max acoustic radiation | 80 dB |
| Vibration level | < 2.5 m/s2 |
| Unit weight | 37 kg / 81.57 lbs |
| Machine dimensions | 15.43 x 22.13 x 15.94″ / 392 x 562 x 405 mm |
| Packing dimensions | 37 x 20.87 x 33.46″ / 940 x 530 x 850 mm |
| Packing weight | 70.55 lbs / 32 kg |
- The DC115-BM orbital facing model is a portable, lightweight machine, ideal for both workshop and in situ applications.
- It is available in an electrical (110 / 220v) version.
- The concentric clamping system guarantees at all times perfect protection of the tube when clamping it and easily adapts to different tube diameters. On the DC115BM model a set of 4 stainless steel concentric jaws is used.
- The set up, locking and machining of the tube is made easy by the large opening pivot, graduated vernier scale for precise advancement and sliding adjustment of the tool holder offering easy diameter change and optimal tip wearing.
- Burr-free tube facing, edge breaking and bevelling (30° & 45°) can be done by selecting the required high quality HSS TIALN inserts.
- Two tools can be used simultaneously and facing and bevelling can be performed in a single operation.
- Optionally, the DC115-BM model can be mounted on an AXXAIR support bench with height adjustable table.

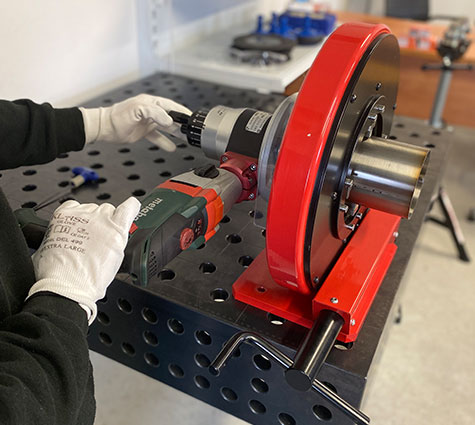

The set up, locking and machining of the tube is made easy by the large opening range

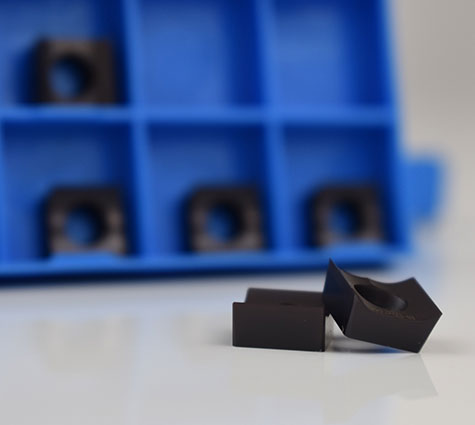

All inserts are double-sided with two cutting edges and are HSS TIALN treated, which improves the insert steadiness and heat resistance

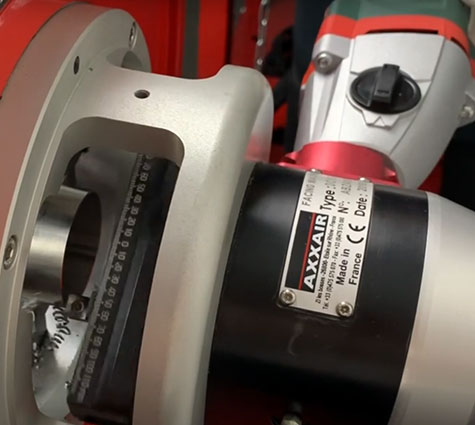

Graduated Vernier Scale for Precise Advancement and sliding adjustment of the tool holder, offering easy diameter change and optimal tip wearing

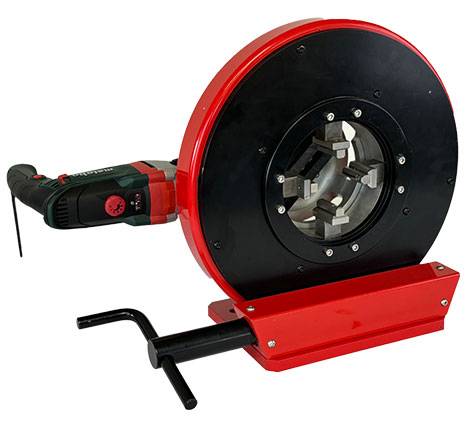

The concentric clamping system guarantees at all time a perfect protection of the tube when clamping it
