TUBE OD RANGE: 18 – 28″ / 447 – 725 mm

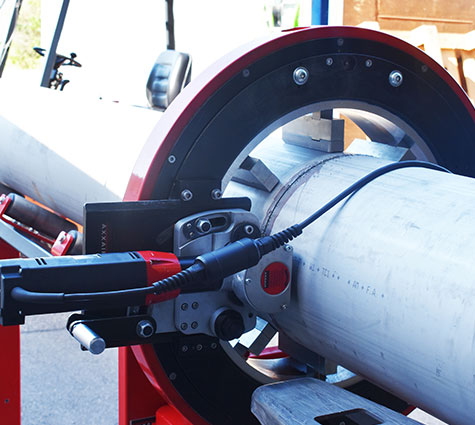

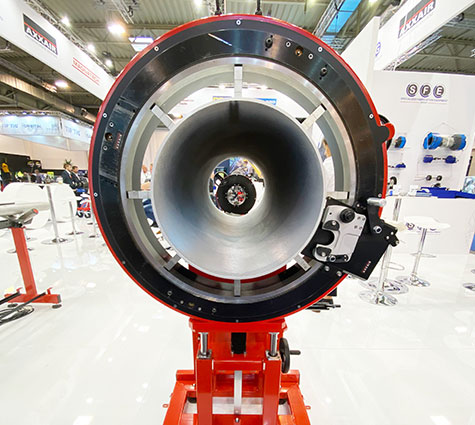

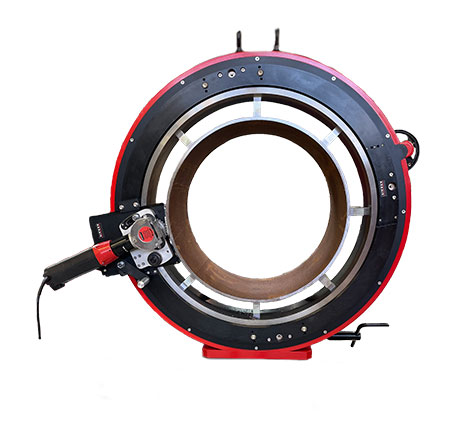

CC721 Orbital Cutting Machine
Designed for large-diameter applications, the CC721 Orbital Cutting Machine covers an orbital cutting range of 18″ to 28″ (447–725 mm). Its orbital cutting process ensures square, burr-free cuts while maintaining perfect tube geometry, with no cutting-force distortion. The CC721 handles all steel grades and exotic alloys with precision and reliability.
Equipped with pneumatic or electric 1200 W motors (110V or 220V), the CC721 features a stainless-steel concentric clamping system that enhances stability and cut quality. The smooth rotation wheel, reduced vibration design, and penetration lever extend blade life while increasing safety, productivity, and overall cutting efficiency.
Mobile Nav
| Description | Electric standard motor | Electric fast motor | Pneumatic |
| Part No. | 721FS15 / 721FS25 | 721FS19 / 721FS29 | 721PD |
| Diameter range | 18 – 28″ / 447 – 725 mm | 18 – 28″ / 447 – 725 mm | 18 – 28″ / 447 – 725 mm |
| Cutting capacity* | Up to 0.6″ / 15 mm | Up to 0.6″ / 15 mm | Up to 0.6″ / 15 mm |
| Blade rotational speed | 30 – 75 rpm | 95 – 280 rpm | 60 – 110 rpm |
| Electric motor power | 1200 watt | 1200 watt | n/a |
| Voltage | 110 / 220 volt | 110 / 220 volt | n/a |
| Frequency | 50 – 60 hz | 50 – 60 hz | n/a |
| Air working pressure | n/a | n/a | 43.5 – 87 psi / 3 – 6 bar |
| Max acoustic radiation | 90 dB | 90 dB | 95 dB |
| Vibration level | < 2.5 m/s2 | < 2.5 m/s2 | n/a |
| Unit weight | 256 kg / 564.4 lbs | 256 kg / 564.4 lbs | 256 kg / 564.4 lbs |
| Machine dimensions | 44.88 x 42.40 x 12.40″ / 1104 x 1077 x 315 mm | 44.88 x 42.40 x 12.40″ / 1104 x 1077 x 315 mm | 44.88 x 42.40 x 12.40″ / 1104 x 1077 x 315 mm |
| Packing dimensions | 25.51 x 48.03 x 52.76″ / 648 x 1220 x 1340 mm | 25.51 x 48.03 x 52.76″ / 648 x 1220 x 1340 mm | 25.51 x 48.03 x 52.76″ / 648 x 1220 x 1340 mm |
| Packing weight | 564 lbs / 256 kg | 564 lbs / 256 kg | 564 lbs / 256 kg |
| * Depending on type of saw blade used and tube material | |||
- AXXAIR CC’s range (powered by a standard or fast electrical or pneumatic motor) consists of a stainless-steel concentric clamping system with a large number of contact points, increasing the cutting range and quality and avoiding tube distortion.
- The stainless-steel jaws guarantee protection from contamination of the tube.
- The distinctive rotation wheel offers smooth rotation, increasing the lifetime of the cutting blade and the cutting quality.
- The penetration lever engages the saw blade for effortless and consistent penetration and cutting of the tube, extending the blade life and improving safety and ease of operation.
- The short blade to jaws distance reduces vibration, extends the blade life and improves cutting quality.
CONSUMABLES & ACCESSORIES
- High quality blades performing burr-free square cuts (< 0.4 mm / 0.015″ perpendicularity precision)
- Lubricant oil and paste
- Support benches for longer tubes
The distinctive rotation wheel offers a smooth rotation, increasing the lifetime of the cutting blade and the cutting quality.
Stainless steel concentric clamping system with a large number of contact points, increasing the cutting range and quality, and avoiding tube distortion

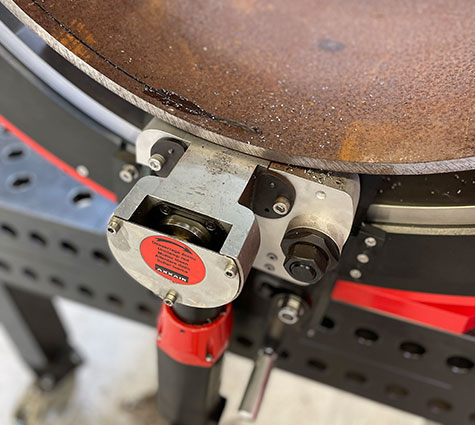

The penetration lever engages the saw blade for effortless and consistent penetration and cutting of the tube, extending the blade life and improving safety and ease of operation.
AXXAIR offers a wide range of high-quality blades performing burr-free square cuts (< 0.25 mm / 0.01″ perpendicularity precision).
