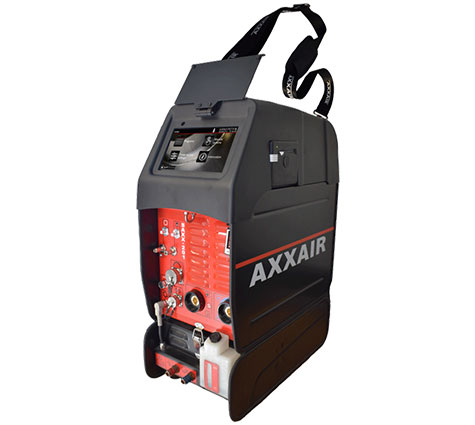

SAXX-201 Orbital Welding Power Source

The SAXX-201 Orbital Welding Power Source is a new-generation orbital TIG welding solution designed for ease of use, precision, and reliable performance. With a 200A output and intuitive interface, operators can quickly create welding programs using automatic parameter calculation and guided assistance. The 7-inch color touch screen and three user access levels provide clear navigation and controlled operation across teams.

Built for traceability and connectivity, the SAXX-201 features full data acquisition with real-time monitoring of welding parameters and purge gas. Data can be viewed on screen or exported via USB for analysis using WeldData software and WPS documentation. With Ethernet connectivity and optional WiFi or wired pendant control, this compact and portable system supports flexible operation in modern fabrication environments.

Request a Quote
Available for Rent

Mobile Nav

Specifications

Description Orbital TIG welding power source, 200A, autoline
Welding current type DC
Supply voltage Single phase main with ground, 110 to 230 V+/- 15%, 50/60Hz
Duty cycle 25% – 200A at 230V | 35% – 140A at 110V
100% – 115A at 230V | 100% – 100A at 110V
IP standard IP21
Data acquisition USB key
Alarms Arc voltage sensors, gas flow sensors, cooling liquid sensors, inverter operation alarm, motorizations alarm (machine and wire feeder)
Screen size 7″
Languages French, English, German, Spanish, Italian, Russian, Chinese, Korean, Japanese, Turkish, Dutch, Polish, Portuguese, Slovak and Hungarian
Industry 4.0 connections Ethernet port – WiFi in option

Product Advantages

  • Intuitive programming with automatic parameter calculation and guided assistance for fast and accurate setup
  • 7-inch color touch screen with multilingual interface for clear visibility and easy navigation
  • Three user access levels for operator, welder, and administrator to enhance control and security
  • Compact and portable design with carrying handle, strap, and screen protection for workshop and field use
  • Integrated printer for printing welding programs and actual parameters to support documentation and traceability
  • USB data acquisition with storage of welding programs and user profiles for consistent, repeatable welds
  • Real-time monitoring and recording of welding parameters every second for full process control
  • Direct on-screen data visualization and export via WeldData software for WPS documentation and analysis
  • Remote control and monitoring via Ethernet, optional WiFi, or optional wired pendant for flexible operation
  • Compatible with AXXAIR and major orbital welding brands through adapter kits for increased versatility
  • Industry 4.0 ready with Ethernet connectivity and software integration for advanced data management
  • Built-in alarms for arc voltage, gas flow, cooling liquid, inverter operation, and motorization for enhanced safety
  • Optional dual independent gas lines with flow management for precise shielding and purge gas control: welding torch and optional internal gas flow control for accurate gas delivery at the weld point
  • Optional wire feeder connector for integration with automated wire feed systems
  • Optional detachable water cooling unit with 700 W capacity and minimum flow alarm for reliable thermal management and portability

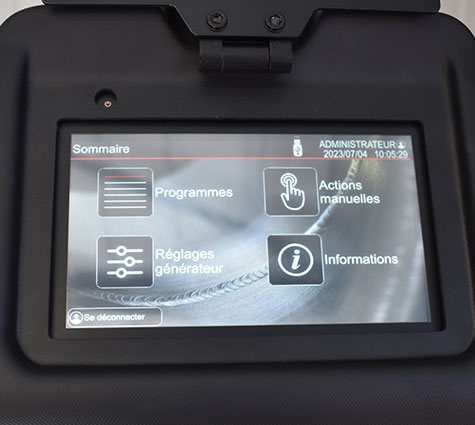

Intuitive programming with automatic parameter calculation and built-in assistance. Features a 7″ color touchscreen, multilingual menu, and three user levels: operator, welder, and administrator.

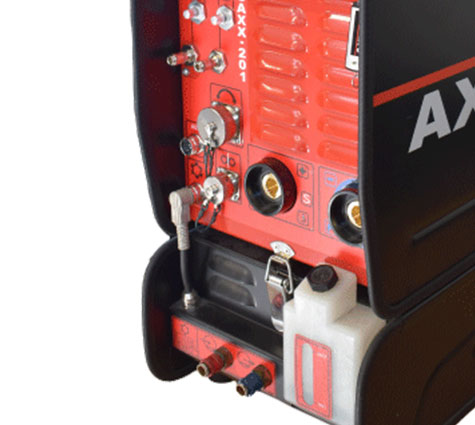

Dual independent gas lines with flow management and support for a welding torch with optional internal gas control. Includes a wire feeder connector and a detachable, tool-free water cooling unit. The 700W cooling system features a minimum flow alarm and can be removed for increased portability.

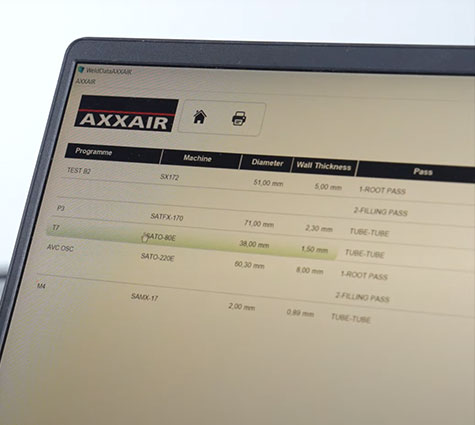

USB data acquisition for recording welding programs and user profiles. The system monitors and saves welding parameters every second, with data viewable on-screen or via WeldData software, and exportable to WPS format.
