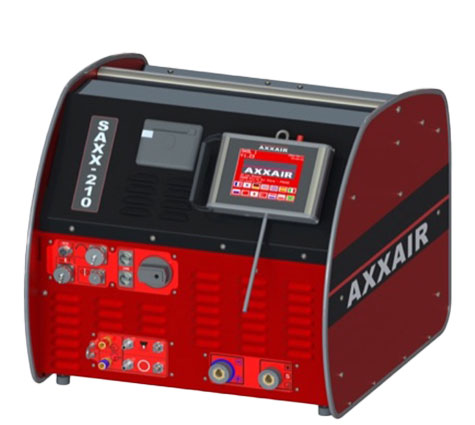

SAXX-210 Orbital Welding Power Source

The SAXX-210 Orbital Welding Power Source is a powerful and user-friendly orbital TIG welding solution designed for precision and repeatability. With a 210A output and intuitive interface, operators can quickly generate welding programs using automatic parameter calculation and guided assistance. The color touch screen and remote pendant with 4-meter cable provide flexible operation in both workshop and field environments.

Designed for traceability and process control, the SAXX-210 features full data acquisition with measured control of shielding and purge gas. Welding parameters are recorded every second and can be exported via USB for analysis with WeldReport software. Ethernet connectivity and optional WiFi enable remote monitoring and control, while the integrated printer and detachable water cooling unit support efficient, modern fabrication workflows.

Request a Quote

Mobile Nav

Specifications

Description Orbital TIG welding power source, 210A, autoline
Welding current type DC
Supply voltage Single phase main with ground, 110 to 230 V+/- 15%, 50/60Hz
Duty cycle 210A / 50% at 230V | 127A / 60% at 110 V
160A / 100% at 230V | 110A / 100% at 110V
IP standard IP21
Data acquisition USB key
Alarms Arc voltage sensors, gas flow sensors, cooling liquid sensors, inverter operation alarm, motorizations alarm (machine and wire feeder)
Screen size 5″
Languages French, English, German, Spanish, Italian, Russian, Chinese, Korean, Japanese, Turkish, Dutch, Polish, Portuguese
Industry 4.0 connections Ethernet port – WiFi in option

Product Advantages

  • Intuitive programming with automatic parameter calculation and guided assistance for fast and accurate setup
  • Color touch screen with multilingual interface and remote pendant with 4 m cable for flexible operation
  • Integrated printer for printing welding programs and actual parameters to support documentation and traceability
  • USB data acquisition with storage for up to 200 welding programs for consistent, repeatable welds
  • Real-time monitoring and recording of welding parameters every second for full process control
  • Advanced gas management with two independent gas lines and measured control of shielding and purge gas: welding torch with integrated internal gas flow control for precise gas delivery at the weld point
  • Remote control and monitoring via Ethernet or optional WiFi using the Proface Remote HMI app on smartphone or tablet
  • Compatible with AXXAIR and most major orbital welding brands through adapter kits for increased versatility
  • Industry 4.0 ready with Ethernet connectivity, USB software updates, and WeldReport software for WPS documentation
  • Built-in alarms for arc voltage, gas flow, cooling liquid, inverter operation, and motorization for enhanced safety
  • Wire feeder connector for integration with automated wire feed systems and expanded welding capability

Intuitive programming with automatic parameter calculation and built-in assistance. Features a 5.7″ color touchscreen, remote pendant with 4 m cable, and a multilingual menu.

Two independent gas lines with flow management, an integrated welding torch with internal gas flow control, and a wire feeder connector.

USB data acquisition to store up to 200 welding programs. The system records welding parameters every second, with data accessible via WeldReport software and exportable to WPS format. Software updates can also be performed via USB.
