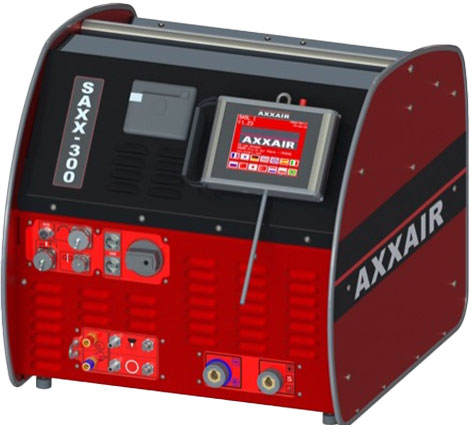

SAXX-300 Orbital Welding Power Source

The SAXX-300 Orbital Welding Power Source is a high-capacity orbital TIG welding solution designed for demanding applications that require power, precision, and reliability. With a 300A output and intuitive interface, operators can quickly generate welding programs using automatic parameter calculation and guided assistance. The color touch screen and remote pendant with 4-meter cable allow flexible operation in both workshop and field environments.

Built for advanced process control and traceability, the SAXX-300 features full data acquisition with measured control of shielding and purge gas. Welding parameters are recorded every second and can be transferred via USB for analysis using WeldReport software and WPS documentation. With Ethernet connectivity and optional WiFi remote control, along with a detachable water-cooling unit, this system supports efficient, modern fabrication workflows.

Request a Quote

Mobile Nav

Specifications

Description Orbital TIG welding power source, 300A, autoline
Welding current type DC
Supply voltage Three phase main with ground, 400 V +/- 15%, 50/60Hz
Duty cycle 300A / 30%, 240A / 60%, 210A / 100% at 400V
IP standard IP21
Data acquisition USB key
Alarms Arc voltage sensors, gas flow sensors, cooling liquid sensors, inverter operation alarm, motorizations alarm (machine and wire feeder)
Screen size 5″
Languages French, English, German, Spanish, Italian, Russian, Chinese, Korean, Japanese, Turkish, Dutch, Polish, Portuguese
Industry 4.0 connections Ethernet port – WiFi in option

Product Advantages

  • Intuitive programming with automatic parameter calculation and guided assistance for fast and accurate setup
  • Color touch screen with multilingual interface and remote pendant with 4 m cable for flexible operation
  • Integrated printer for printing welding programs and actual parameters to support documentation and traceability
  • USB data acquisition with storage for up to 200 welding programs for consistent, repeatable welds
  • Real-time monitoring and recording of welding parameters every second for full process control
  • Remote data transfer capability to send and retrieve welding data via USB for improved workflow efficiency
  • Advanced gas management with two independent gas lines and measured control of shielding and purge gas: welding torch with integrated internal gas flow control for precise gas delivery at the weld point
  • Remote control and monitoring via Ethernet or optional WiFi using the Proface Remote HMI app on smartphone or tablet
  • Compatible with AXXAIR and major orbital welding brands through adapter kits for increased versatility
  • Industry 4.0 ready with Ethernet connectivity, USB software updates, and WeldReport software for WPS documentation
  • Built-in alarms for arc voltage, gas flow, cooling liquid, inverter operation, and motorization for enhanced safety
  • Wire feeder connector for integration with automated wire feed systems and expanded welding capability

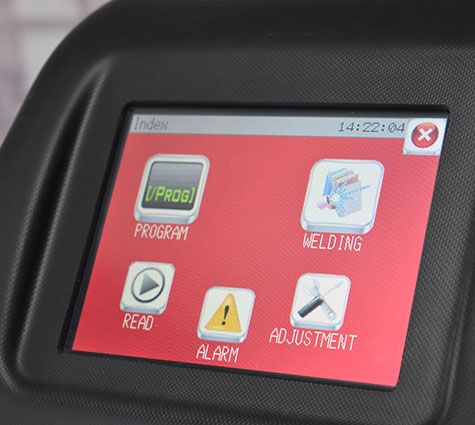

Intuitive programming with automatic parameter calculation and built-in assistance. Features a 5.7″ color touchscreen, remote pendant with 4 m cable, and a multilingual menu.

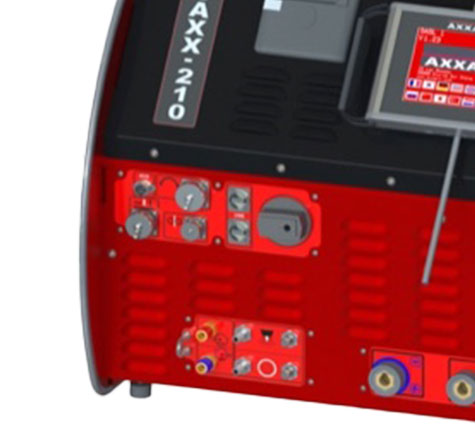

Two independent gas lines with flow management, welding torch with internal gas flow control, and a wire feeder connector.

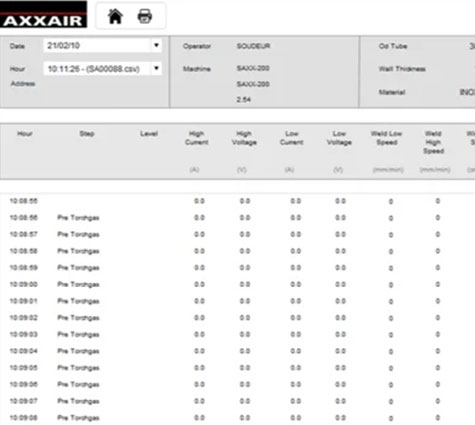

USB data acquisition for storing up to 200 welding programs. The system records welding parameters every second, supports remote sending and retrieval of data via the SAXX USB key, and allows viewing through WeldReport software with export to WPS format. Software updates can also be performed via USB.
