TUBE OD RANGE: 0.75 – 4.5″ / 19 – 115 mm
COOLING SYSTEM: Water-cooled or air-cooled torch
FUNCTION: Orbital TIG welding by fusion/fusion + wire

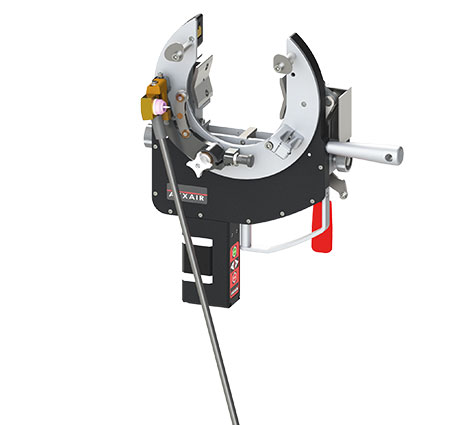

SATO-115 Open Head Orbital Weld Head
The SATO-115 open head orbital weld head is built for larger tube diameters from 0.75 to 4.5 inches, offering exceptional performance in heavy-duty industrial environments. It is well suited for petrochemical, oil and gas, and energy sectors where weld quality and durability are essential. The system ensures consistent orbital TIG welding results across a range of wall thicknesses.
Equipped with precise electrode alignment and stable arc control, the SATO-115 delivers repeatable welds even in demanding conditions. Its liquid cooled version supports 200 A at 100 percent duty cycle, making it ideal for continuous production. The adjustable handle and remote operation improve usability in complex jobsite conditions.
Mobile Nav
| DESCRIPTION | SATO-115 | |
| Tube O/D range | 0.75 – 4.5″ / 19 – 115 mm | |
| SATO TECHNICAL FEATURES (LIQUID COOLED) | ||
| Description | SATO-115 | SATO-115 |
| Motor | STRAIGHT MOTOR | ANGLED MOTOR |
| Part No. | SATO-115E41 | SATO-115E42 |
| Diameter range | 0.75 – 4.5″ / 19 – 115 mm | 0.75 – 4.5″ / 19 – 115 mm |
| 100% duty cycle | 200 A | 200 A |
| Electrode diameter | 1/16″ or 3/32″ / 1.6 or 2.4 mm | 1/16″ or 3/32″ / 1.6 or 2.4 mm |
| Cooling system | Yes | Yes |
| Max operating temperature | 40 °C / 104 °F | 40 °C / 104 °F |
| Unit weight | 14.8 lbs / 6.7 kg | 14.8 lbs / 6.7 kg |
| SATO TECHNICAL FEATURES (AIR COOLED) | ||
| Description | SATO-115 | SATO-115 |
| Motor | STRAIGHT MOTOR | ANGLED MOTOR |
| Part No. | SATO-115E43 | SATO-115E44 |
| Diameter range | 0.75 – 4.5″ / 19 – 115 mm | 0.75 – 4.5″ / 19 – 115 mm |
| 100% duty cycle | 100 A | 100 A |
| Electrode diameter | 1/16″ or 3/32″ / 1.6 or 2.4 mm | 1/16″ or 3/32″ / 1.6 or 2.4 mm |
| Cooling system | No | No |
| Max operating temperature | 40 °C / 104 °F | 40 °C / 104 °F |
| Unit weight | 14.8 lbs / 6.7 kg | 14.8 lbs / 6.7 kg |
- Designed for orbital TIG welding on tube diameters from 19 to 115 mm
- Supports both fusion welding and welding with filler wire for process flexibility
- Available in liquid cooled (200 A) and air cooled (100 A) configurations
- Mechanical O/D tracking maintains constant arc distance without scratching the tube
- Mark-free roller system preserves surface finish on critical applications
- Dual-axis torch adjustment allows precise weld positioning and control
- Oscillation (OSC) and arc voltage control (AVC) compatibility for advanced welding procedures
- Precise electrode alignment with starwheel adjustment for repeatable weld quality
- Quick, symmetrical lever clamping system reduces setup time and improves productivity
- Compact and ergonomic design for easy operation in tight or restricted spaces
- Remote control capability for start, stop, and electrode rotation functions
- Compatible with SAXX power source for reliable, high-performance operation
Precise axial alignment of the electrode thanks to the starwheel.
Versatile weld configuration with dual-axis torch adjustment.
Remote control for start/stop and electrode rotation.
AXXAIR Orbital TIG welding machines: SATO open heads
