TUBE OD RANGE: 1 – 6.625″ / 25 – 170 mm
COOLING SYSTEM: Water-cooled or liquid-cooled torch
FUNCTION: Orbital TIG welding with AVC/OSC system

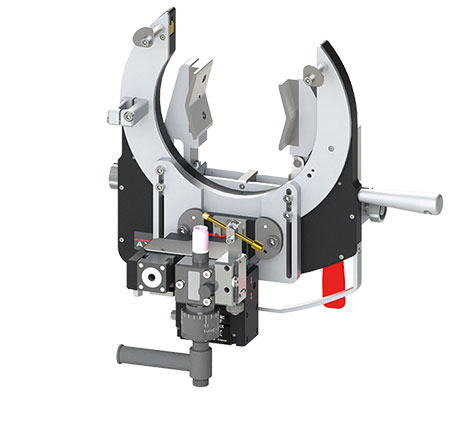

SATO-170 AVC/OSC Open Head Orbital Weld Head
The SATO-170 AVC/OSC open head orbital welder is designed for large diameter pipe welding from 1 to 6.625 inches. It is ideal for heavy industrial applications including refineries, power plants, and large-scale process piping where weld quality and repeatability are critical. This advanced orbital TIG welding system provides consistent results across a wide range of materials, including high-alloy steels and exotic metals.
With integrated arc voltage control and oscillation, the SATO-170 AVC/OSC ensures optimal weld quality in multi-pass and thick-wall applications. The AVC system automatically regulates arc length, while the oscillation function distributes heat evenly for superior weld penetration and bead consistency. Its rugged design, combined with a 200 A liquid cooled capacity, supports continuous operation in demanding field and shop environments.
Mobile Nav
| TECHNICAL FEATURES (liquid cooled) | ||
| Description | SATO-170 with AVC/OSC system | SATO-170 with AVC/OSC system |
| Motor | STRAIGHT MOTOR | ANGLED MOTOR |
| Part No. | SATO-170E51 | SATO-170E52 |
| Diameter range | 1 – 6.625″ / 25 – 170 mm | 1 – 6.625″ / 25 – 170 mm |
| 100% duty cycle | 200 A | 200 A |
| Electrode diameter | 1/16″ or 3/32″ / 1.6 or 2.4 mm | 1/16″ or 3/32″ / 1.6 or 2.4 mm |
| Cooling system | Yes | Yes |
| Max operating temperature | 40 °C / 104 °F | 40 °C / 104 °F |
| Unit weight | 26.5 lbs / 12.7 kg | 26.5 lbs / 12.7 kg |
- Designed for orbital TIG welding on tube diameters from 25 to 170 mm
- Integrated AVC system provides automatic arc length and voltage control
- Oscillation capability supports high-quality multi-pass welds
- Ideal for thick wall pipe welding up to 12.7 mm
- 200 A liquid cooled system enables continuous duty operation
- Motorized electrode movement improves weld consistency and precision
- Small rotation sweep allows access in tight or obstructed work areas
- Fast and secure clamping system reduces setup time
- Durable construction for harsh industrial environments
- Compatible with SAXX power source for reliable performance
Constant electrode-to-tube distance with motorized setting and control (AVC), regulating arc voltage and maintaining the distance between the electrode and the tube.
Adjustable handle.
AVC/OSC system enables welding of tubes and pipes with wall thicknesses up to 12.7 mm (0.500”).
AXXAIR Orbital TIG welding machines: SATO open heads
