TUBE OD RANGE: 0.25 – 4.5″ / 5 – 121 mm

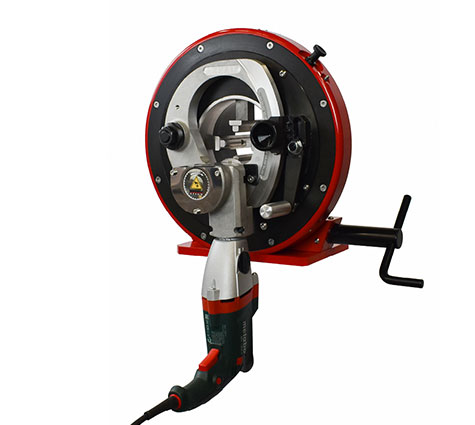

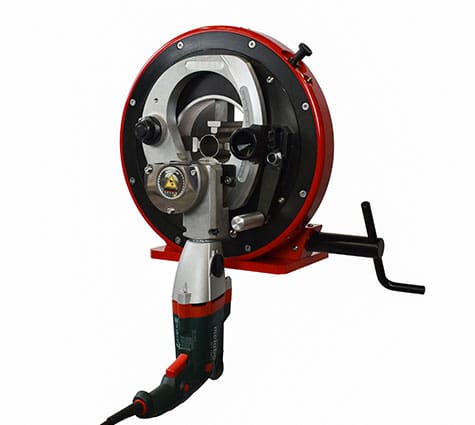

121ECO Orbital Cutting Machine
Achieve precise, deformation-free cuts with the AXXAIR 121ECO orbital cutting machine. Engineered with stainless steel concentric jaws, this machine prevents tube deformation, especially critical for thin-walled tubes, by securely clamping each piece for a consistent, perpendicular cut. The orbital saw moves smoothly around the tube, ensuring repeatable precision that minimizes the gap between tube ends, eliminating the need for additional facing and saving both time and costs.
Designed for flexibility, productivity, and portability, the 121ECO is an ideal tool for seamless tube-to-tube alignment in automatic and orbital welding applications. While the ECO range focuses solely on cutting, the CC range are scalable for beveling and welding use, enhancing versatility on-site or in the workshop.
Mobile Nav
| DESCRIPTION | 121ECO |
| Part No. | 121ECO1 – 121ECO2 |
| Diameter range | 0.25 – 4.5″ / 5 – 121 mm |
| Cutting capacity | 0.2″ / 5 mm |
| Blade rotational speed | 24 – 144 / 68 – 413 rpm |
| Electric motor power | 1300 watt |
| Voltage | 110 or 220 volt |
| Frequency | 50 / 60 hz |
| Max acoustic radiation | 92 dB |
| Vibration level | < 2.5 m/s2 |
| Unit weight | 38 kg / 84 lbs |
| Machine dimensions | 17 x 20.47 x 11.69″ / 432 x 520 x 297 mm |
| Packing dimensions | 16.53 x 24.41 x 28.35″ / 420 x 620 x 720 mm |
| Packing weight | 123.46 lbs / 56 kg |
- The lighter design ECO range (powered by a speed adjustable 1300W Metabo motor) consists of a stainless steel concentric clamping system with a large number of contact points, increasing the cutting range and quality and avoiding tube distortion.
- The stainless-steel jaws guarantee protection from contamination of the tube.
- The penetration lever engages the saw blade for effortless and consistent penetration and cutting of the tube, extending the blade life and improving safety and ease of operation.
- The short blade to jaws distance reduces vibration, extends the blade life and improves cutting quality.
AXXAIR offers a wide range of high-quality blades performing burr-free square cuts (< 0.25 mm / 0.01″ perpendicularity precision) and lubricant oil and paste. The 121ECO model can be fitted with support benches for longer tubes.

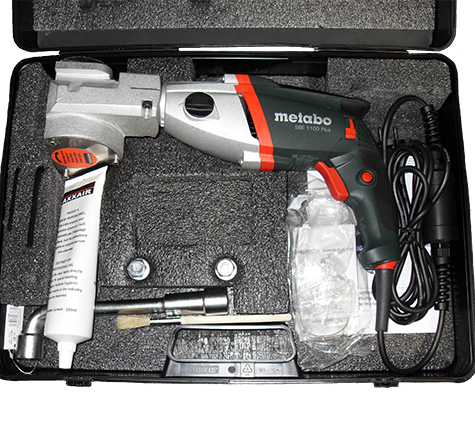

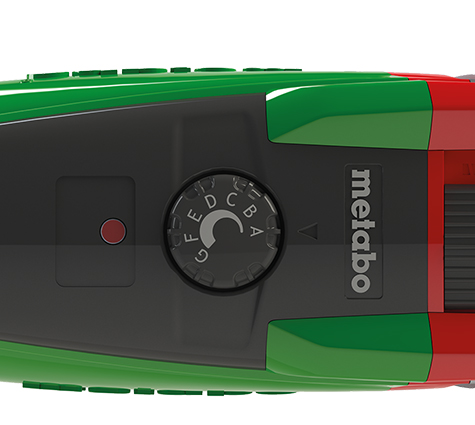

Powered by a speed adjustable 1300W Metabo motor
Stainless steel concentric clamping system with a large number of contact points, increasing the cutting range and quality, and avoiding tube distortion
The penetration lever engages the saw blade for effortless and consistent penetration and cutting of the tube, extending the blade life and improving safety and ease of operation.
AXXAIR offers a wide range of high-quality blades performing burr-free square cuts (< 0.25 mm / 0.01″ perpendicularity precision).
BROCHURE
OPERATING MANUAL
Videos

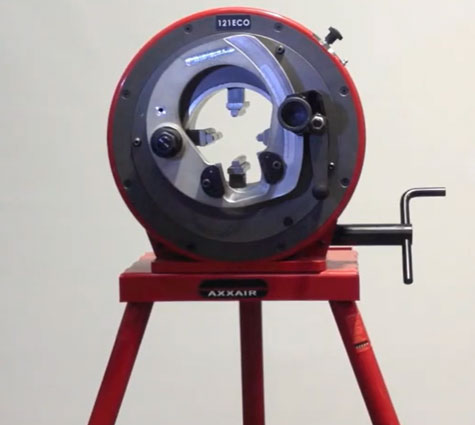

121ECO : AXXAIR Orbital cutting machine
