TUBE OD RANGE: 0.25 – 3″ / 5 – 78 mm

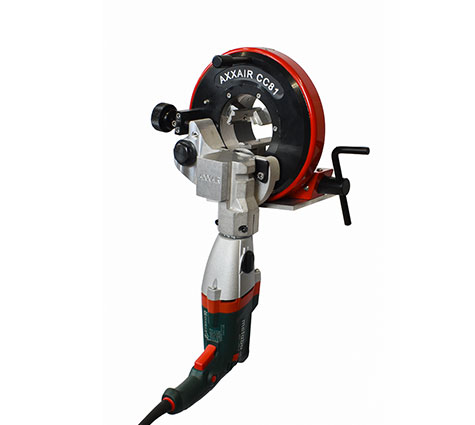

81M Orbital Cutting Machine
Achieve precise, deformation-free cuts with the AXXAIR 81M orbital cutting machine. Engineered with stainless steel concentric jaws, this machine prevents tube deformation, especially critical for thin-walled tubes, by securely clamping each piece for a consistent, perpendicular cut. The orbital saw moves smoothly around the tube, ensuring repeatable precision that minimizes the gap between tube ends, eliminating the need for additional facing and saving both time and costs.
Designed for flexibility, productivity, and portability, the 81M is an ideal tool for seamless tube-to-tube alignment in automatic and orbital welding applications. While the 81M focuses solely on cutting, other AXXAIR frames are scalable for beveling and welding use, enhancing versatility on-site or in the workshop.
Mobile Nav
| DESCRIPTION | 81M |
| Part No. | 81M11 – 81M21 |
| Diameter range | 0.25 – 3″ / 5 – 78 mm |
| Cutting capacity | 0.2″ / 5 mm |
| Blade rotational speed | 24 – 144 / 68 – 413 rpm |
| Electric motor power | 1300 watt |
| Voltage | 110 or 220 volt |
| Frequency | 50 / 60 hz |
| Max acoustic radiation | 92 dB |
| Vibration level | < 2.5 m/s2 |
| Unit weight | 15 kg / 33 lbs |
| Machine dimensions | 10.35 x 13.62 x 9.29″ / 263 x 246 x 236 mm |
| Packing dimensions | 16.14 x 24.02 x 14.17″ / 410 x 610 x 360 mm |
| Packing weight | 44 lbs / 20 kg |
- The lighter design ECO range (powered by a speed adjustable 1300W Metabo motor) consists of a stainless steel concentric clamping system with a large number of contact points, increasing the cutting range and quality and avoiding tube distortion.
- The stainless-steel jaws guarantee protection from contamination of the tube.
- The short blade to jaws distance reduces vibration, extends the blade life and improves cutting quality.
AXXAIR offers a wide range of high-quality blades performing burr-free square cuts (< 0.25 mm / 0.01″ perpendicularity precision) and lubricant paste compatible with the ECO range machines.
Powered by a speed adjustable 1300W Metabo motor

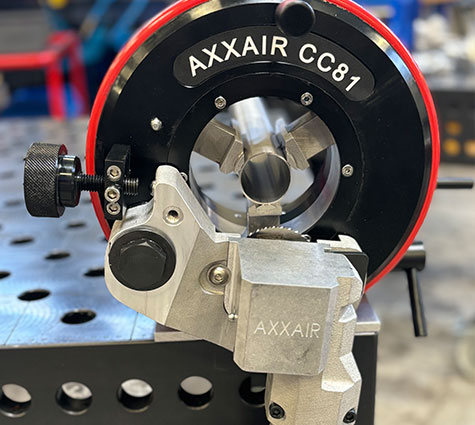

Stainless steel concentric clamping system with a large number of contact points, increasing the cutting range and quality, and avoiding tube distortion
AXXAIR offers a wide range of high-quality blades performing burr-free square cuts (< 0.25 mm / 0.01″ perpendicularity precision).
BROCHURE
OPERATING MANUAL
Videos

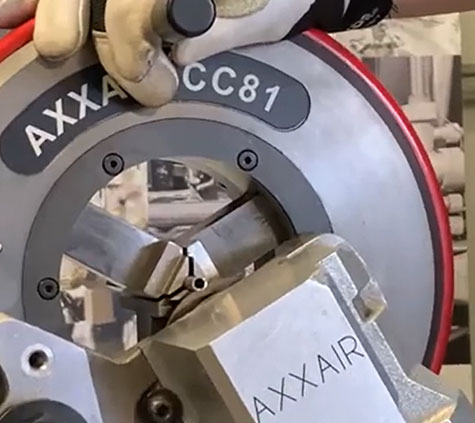

81M : AXXAIR Orbital cutting machine
